• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) steel includes Gray center caps and steel spare (Standard on *G23406, *G33406, and *G33706 models only.)
• Tires, front LT245/75R16E all-season, blackwall (Standard on *G23406, *G33406 and *G33706 models.)
• Tires, rear LT245/75R16E all-season, blackwall (Standard on *G23406, *G33406 and *G33706 models.)
• Tire, spare LT245/75R16E all-season, blackwall located at rear underbody of vehicle (Standard on *G23406, *G33406 and *G33706 models.)
• Wheel trim, chrome center cap (Upgradeable to (P46) 4 - 17" x 7.5" (43.2 cm x 19.1 cm) aluminum uplevel wheels on **13406 models.)
• Body, standard
• Chrome Appearance Package
• Bumpers, front and rear chrome with step-pad (Included with (ZR7) Chrome Appearance Package.)
• Grille, chrome with dual composite halogen headlamps (Included and only available with (ZR7) Chrome Appearance Package.)
• Headlamps, halogen
• Mirrors, outside manual, Black
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Glass, swing-out side door windows
• Glass, swing-out rear cargo door windows
• Glass, enhanced-technology, rearmost side windows. 3-layer special glass is designed to help reduce the risk of ejection during a crash (Standard on *G23406, *G33406, and *G33706 models with 12- and 15- passenger seating. Not available with 8-passenger seating.)
• Glass, full-body window package (Includes (A18) swing-out rear cargo door window glass and (A19) swing-out side door window glass.)
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front
• Door, swing-out passenger-side, 60/40 split

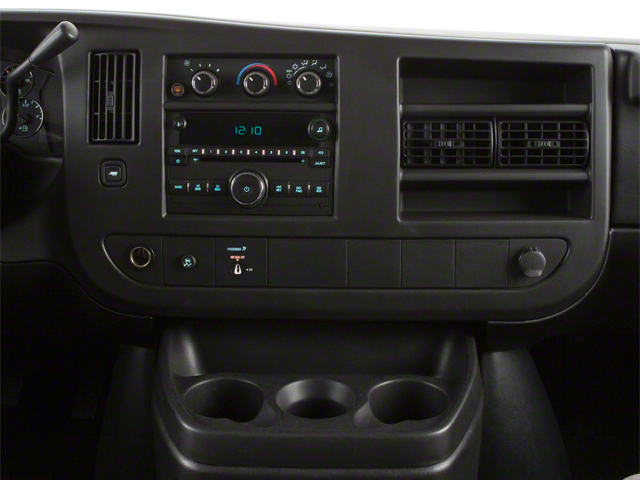

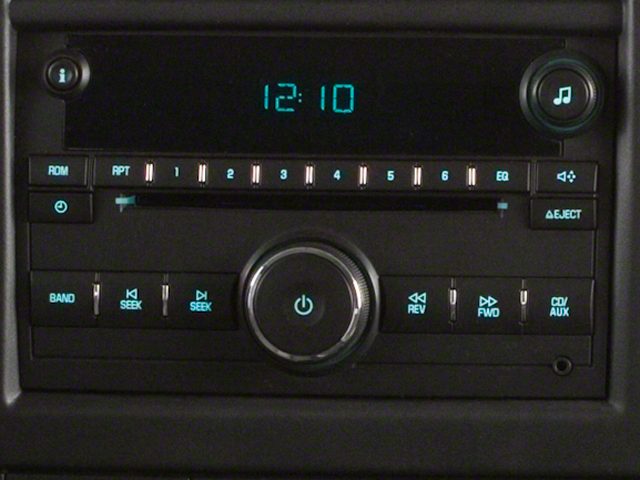

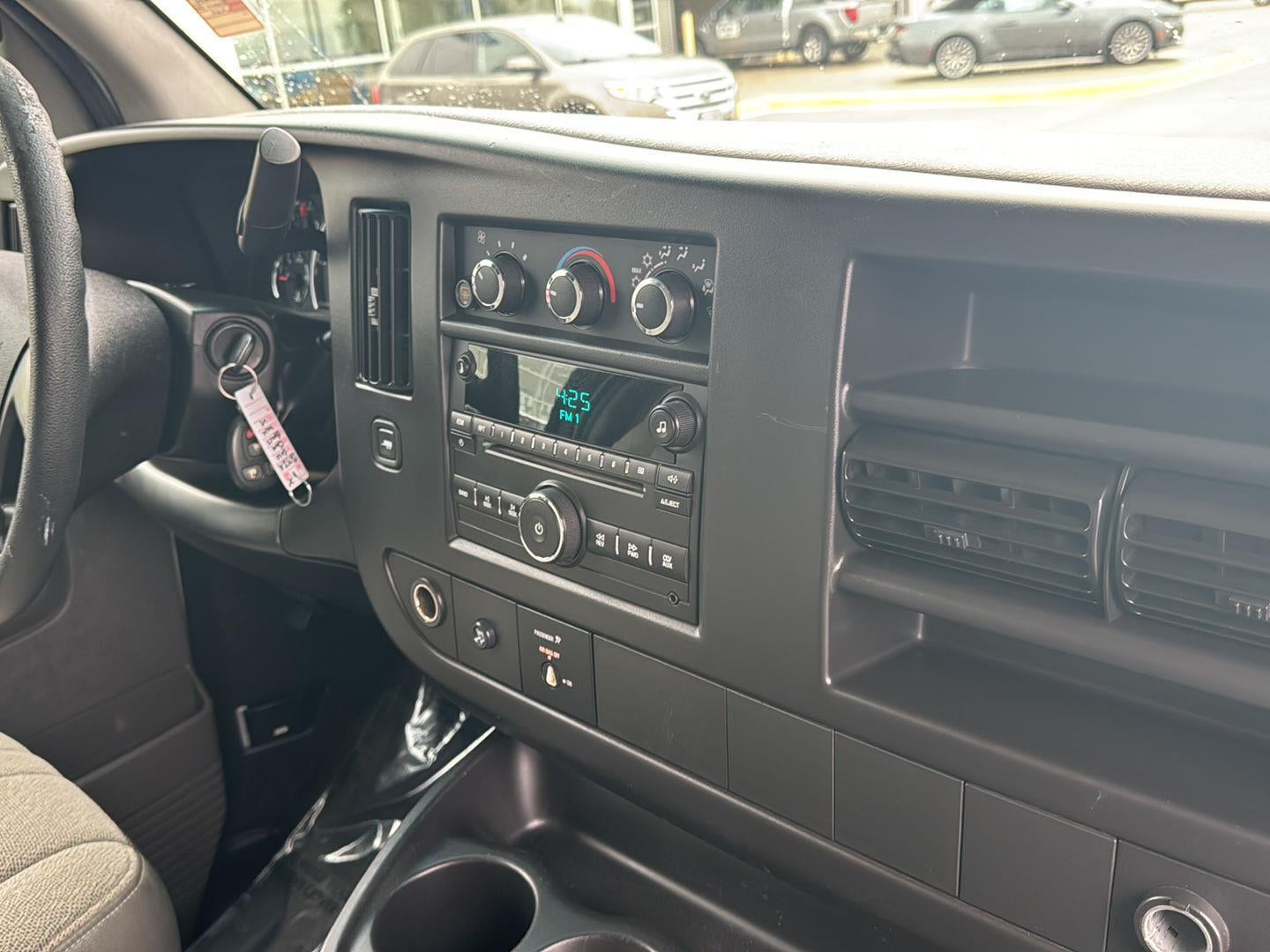

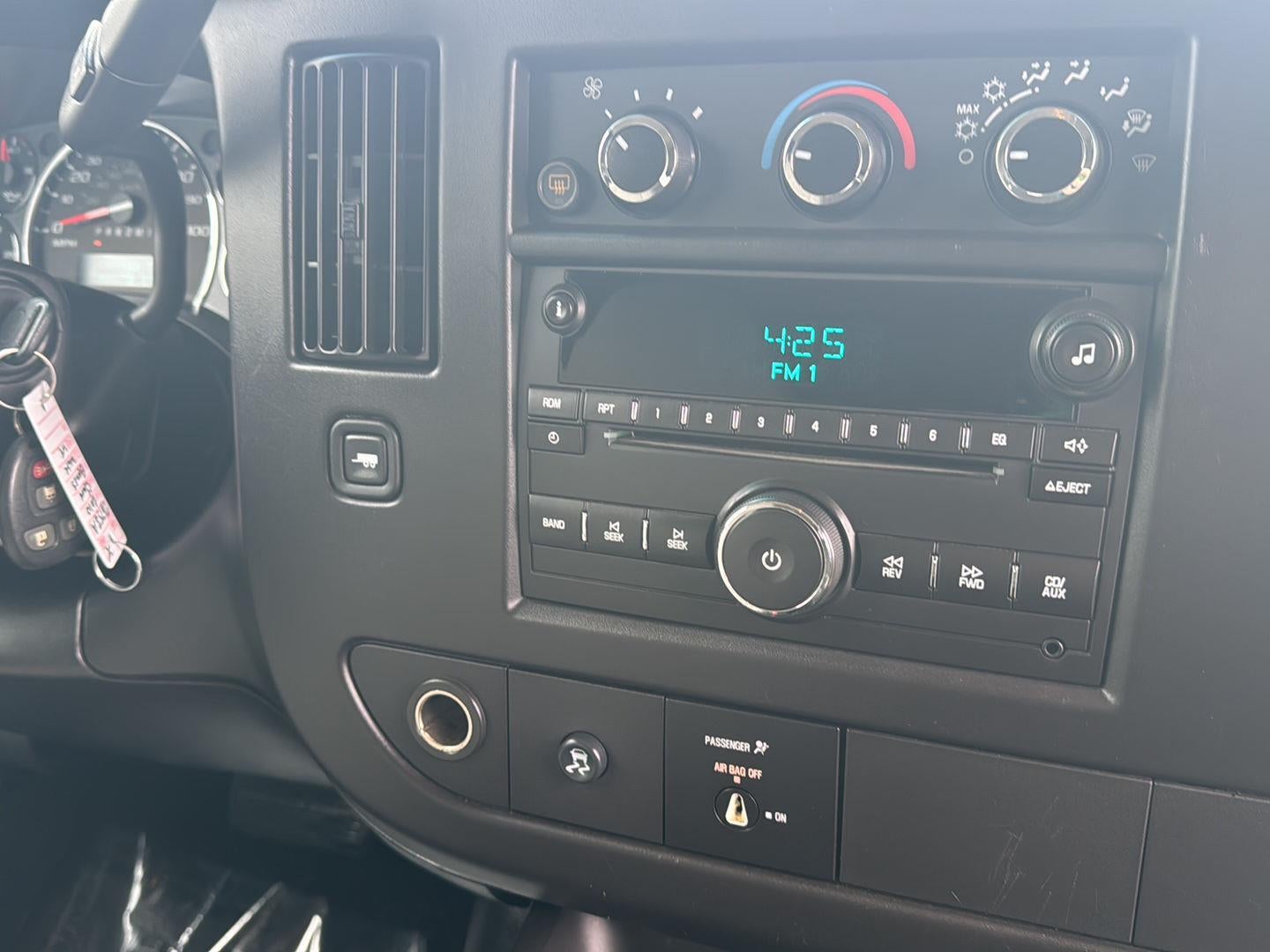

• Audio system, AM/FM stereo with seek-and-scan, digital clock and 2 front door speakers (Not available with (NP5) leather wrapped steering wheel.)

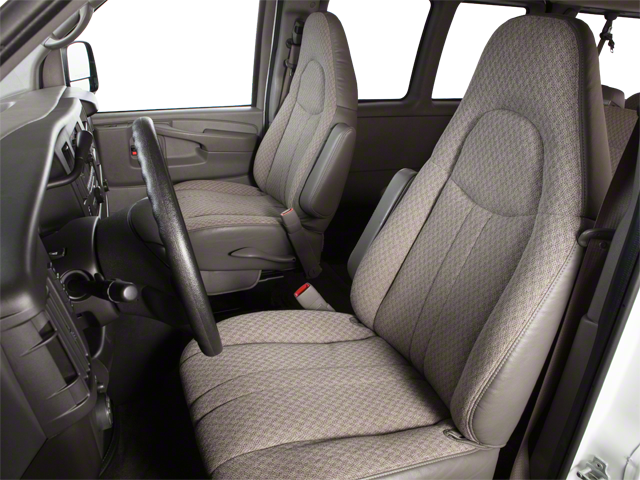

• Seats, front bucket with Custom Cloth trim head restraints and inboard armrests (Requires (**G) interior trim. When ordering a seating arrangement that includes rear seats, includes rear bench seats with Custom Cloth trim. Head restraints are not available on rear bench seats.)

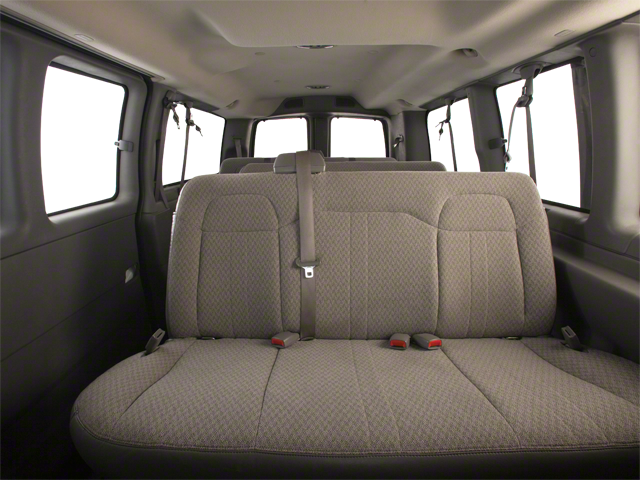

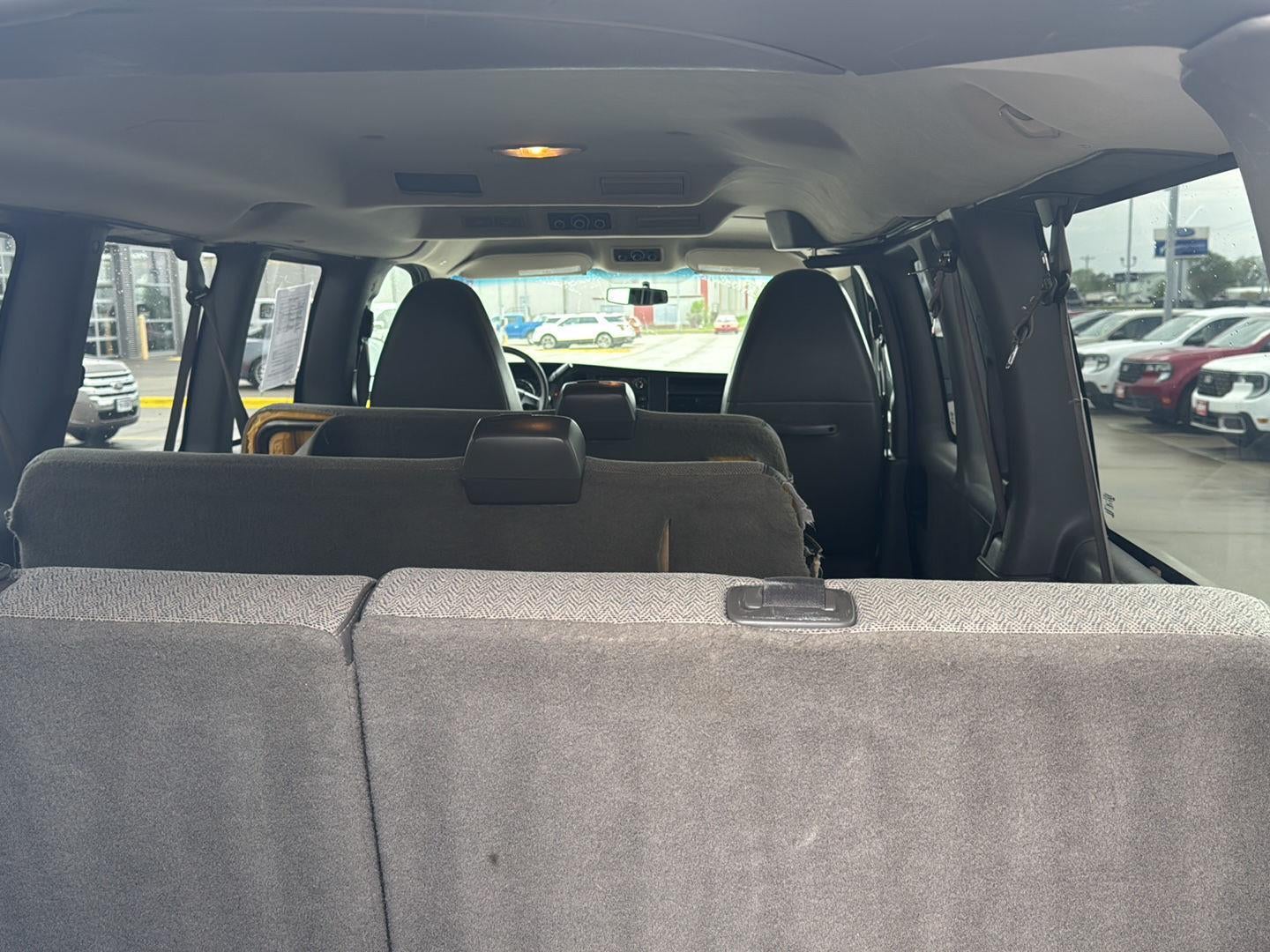

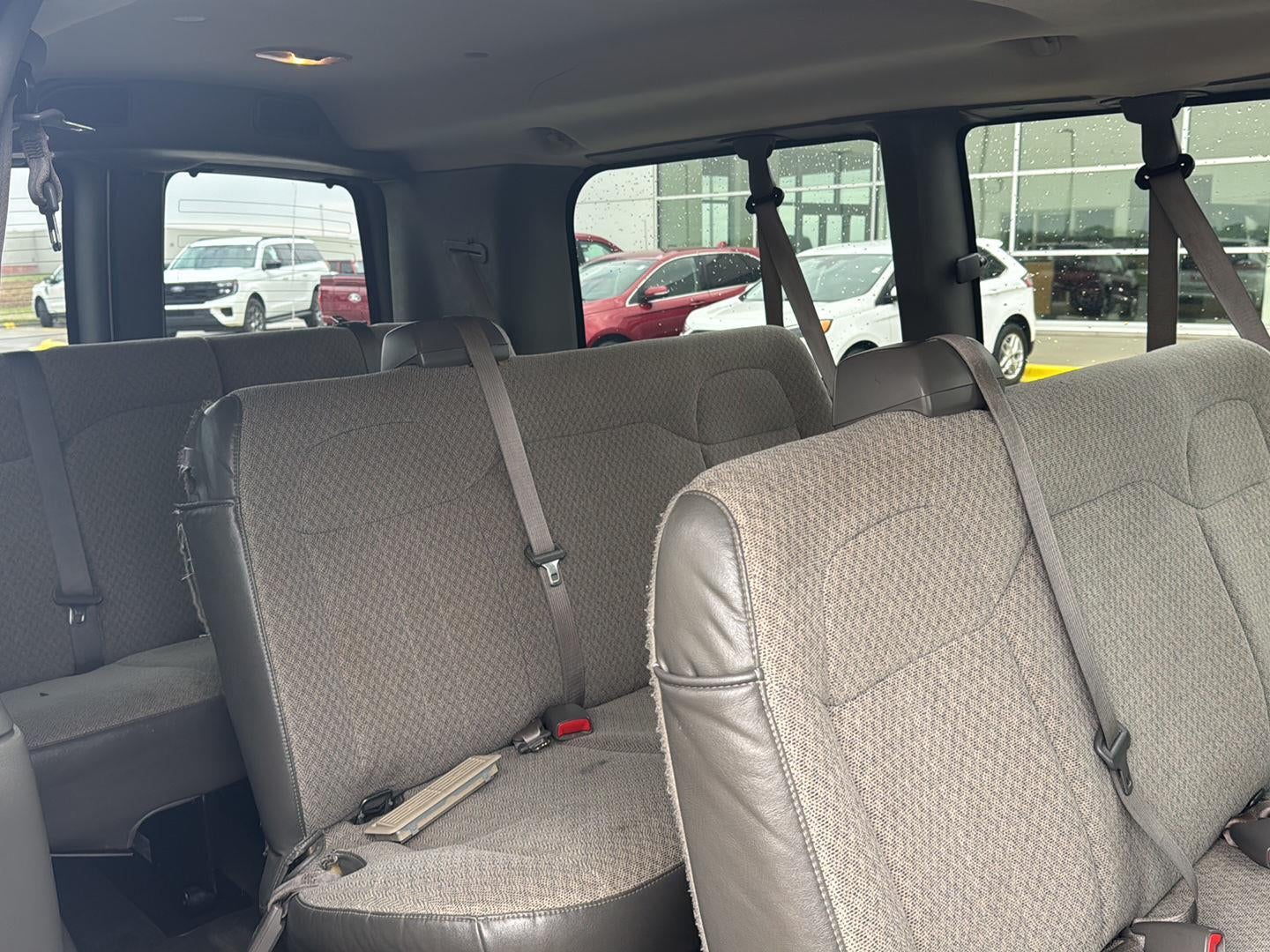

• Seating, 12-passenger, (2-3-3-4 seating configuration) 4-passenger seat is a 50/50 split, 2-piece configuration (Standard on *G23406, *G33406, and *G33706 models only.)
• Console, deluxe with swing-out storage bin
• Floor covering, full-floor color-keyed carpeting with front and rear rubberized vinyl floor mats
• Steering wheel steel sleeve column with theft-deterrent locking feature, Black
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Compass, 8-point digital located in the Driver Information Center (Included and only available with (C69) rear air conditioning.)
• Convenience Package, power windows and door locks
• Convenience Package, Tilt-Wheel and cruise control (Standard on the *G33406 and *G33706 models.)

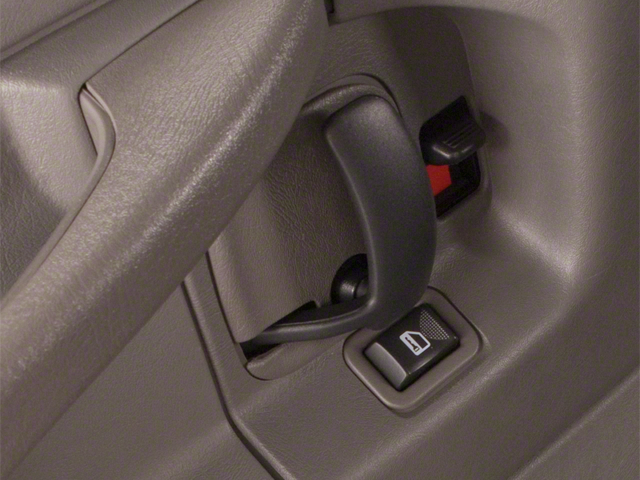

• Windows, power
• Door locks, power with lock-out protection (Included with (ZQ2) Convenience Package.)
• Remote Keyless Entry with 2 transmitters and remote panic button (Upgradeable to (AP3) Remote vehicle starter system. Not available with (AP3) Remote vehicle starter system.)
• Cruise control (Included and only available with (ZQ3) Convenience Package, tilt-wheel and cruise control.)
• Theft-deterrent system, vehicle, PASS-Key III
• Air conditioning, single-zone manual
• Air conditioning, rear
• Heater, rear auxiliary
• Defogger, front and side windows
• Mirror, inside rearview manual day/night
• Headliner, cloth
• Visors, driver and front passenger, padded with cloth trim and dual vanity mirrors, illuminated on passenger-side
• Assist handle, front passenger
• Lighting, interior with 2 dome lights defeat switch and door handle-activated switches
• Lighting, auxiliary with reading and underhood lights

• StabiliTrak, traction assistance and vehicle stability enhancement system
• Door beams, steel-side
• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch for models with (C6P) 8600 lbs. (3901 kg) GVWR and above. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, head/side-curtain provides coverage for first 3-rows only. Enhanced-technology glass is provided for the fourth and fifth rows when equipped with 12- and 15-passenger seating. (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Child seat anchors all three passenger rear seats have four anchors and two tethers
• Tire Pressure Monitor System (does not apply to spare tires)

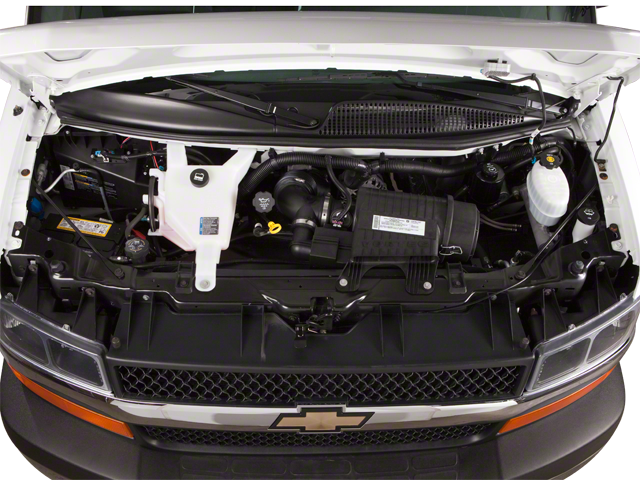

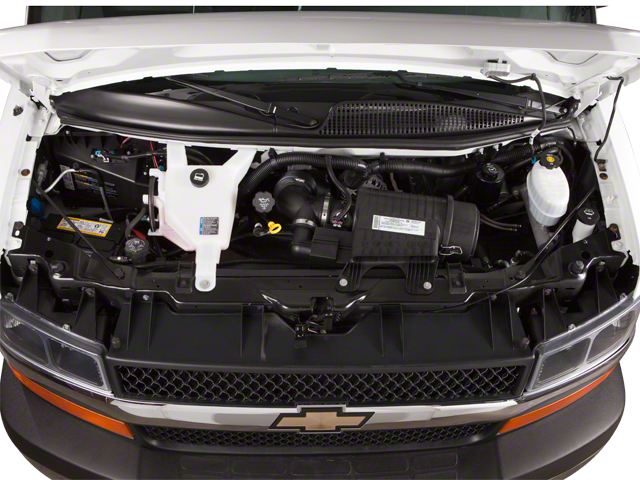

ENGINE, VORTEC 6.0L V8 SFI FLEXFUEL

• (323 hp [240.8 kW] @ 4600 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (STD) Includes external engine oil cooler.

• Engine
• Vortec 6.0L V8 SFI FlexFuel (323 hp [240.8 kW] @ 4600 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (Standard on *G23406
• *G33406 or *G33706 models. Includes external engine oil cooler. Reference the Engine/Axle page for availability. Horsepower and torque may vary based on whether (FE9) Federal emissions requirements or (YF5) California emissions requirements are ordered)
• Rear axle
• 3.42 ratio (Standard on **13406
• *G23*06
• and *G33*06 models. Reference the Engine/Axle page for availability.)
• Rear-Wheel Drive
• Transmission oil cooler
• external (Standard on *G23406
• *G33406 or *G33706 models. Requires (L96) Vortec 6.0L V8 SFI FlexFuel engine.)
• Battery
• 600 cold-cranking amps
• maintenance-free with rundown protection and retained accessory power
• Alternator
• 145 amps
• Frame
• ladder-type
• Suspension
• front independent with coil springs and stabilizer bar (Standard and only available on *G***06 models.)
• Suspension
• rear hypoid drive axle with multi-leaf springs
• GVWR
• 9600 lbs. (4354 kg) (Standard on *G33*06 models. Reference the Engine/Axle page for availability.)
• Steering
• power
• Brakes
• 4-wheel antilock
• 4-wheel disc
• Fuel tank capacity
• mid-frame and approximately 31 gallons (117.3L)
• Exhaust
• aluminized stainless-steel muffler and tailpipe
• Wheels
• 4 - 16" x 6.5" (40.6 cm x 16.5 cm) steel includes Gray center caps and steel spare (Standard on *G23406
• *G33406
• and *G33706 models only.)
• Tires
• front LT245/75R16E all-season
• blackwall (Standard on *G23406
• *G33406 and *G33706 models.)
• Tires
• rear LT245/75R16E all-season
• blackwall (Standard on *G23406
• *G33406 and *G33706 models.)
• Tire
• spare LT245/75R16E all-season
• blackwall located at rear underbody of vehicle (Standard on *G23406
• *G33406 and *G33706 models.)
• Wheel trim
• chrome center cap (Upgradeable to (P46) 4 - 17" x 7.5" (43.2 cm x 19.1 cm) aluminum uplevel wheels on **13406 models.)
• Body
• standard
• Chrome Appearance Package
• Bumpers
• front and rear chrome with step-pad (Included with (ZR7) Chrome Appearance Package.)
• Grille
• chrome with dual composite halogen headlamps (Included and only available with (ZR7) Chrome Appearance Package.)
• Headlamps
• halogen
• Mirrors
• outside manual
• Black
• Glass
• Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Glass
• swing-out side door windows
• Glass
• swing-out rear cargo door windows
• Glass
• enhanced-technology
• rearmost side windows. 3-layer special glass is designed to help reduce the risk of ejection during a crash (Standard on *G23406
• *G33406
• and *G33706 models with 12- and 15- passenger seating. Not available with 8-passenger seating.)
• Glass
• full-body window package (Includes (A18) swing-out rear cargo door window glass and (A19) swing-out side door window glass.)
• Wipers
• front intermittent wet-arm with pulse washers
• License plate kit
• front
• Door
• swing-out passenger-side
• 60/40 split
• Console

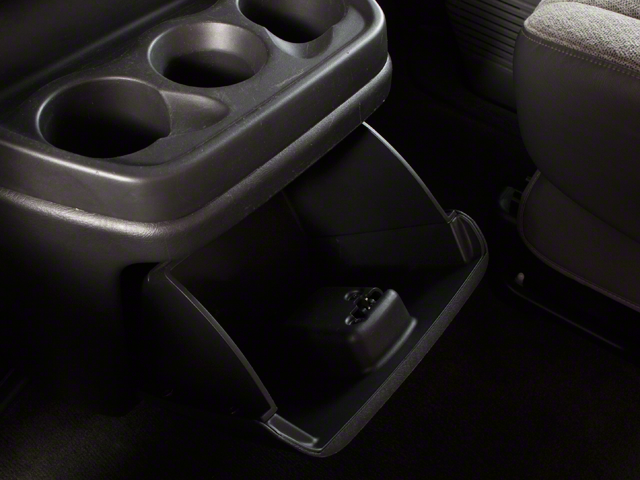

• deluxe with swing-out storage bin
• Cup holders
• 3 on engine console cover
• Floor covering
• full-floor color-keyed carpeting with front and rear rubberized vinyl floor mats
• Steering wheel steel sleeve column with theft-deterrent locking feature
• Black

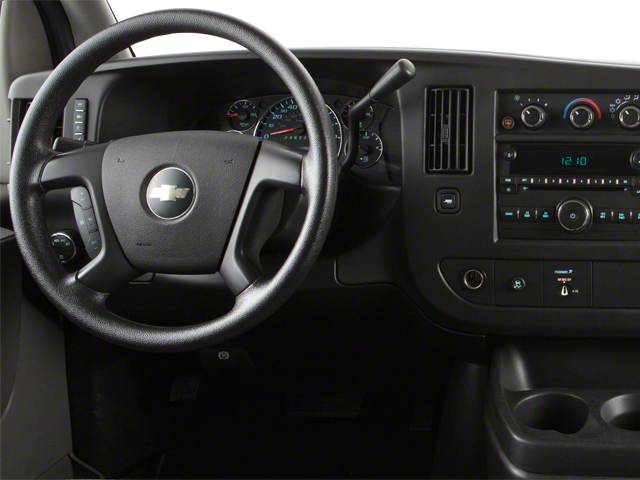

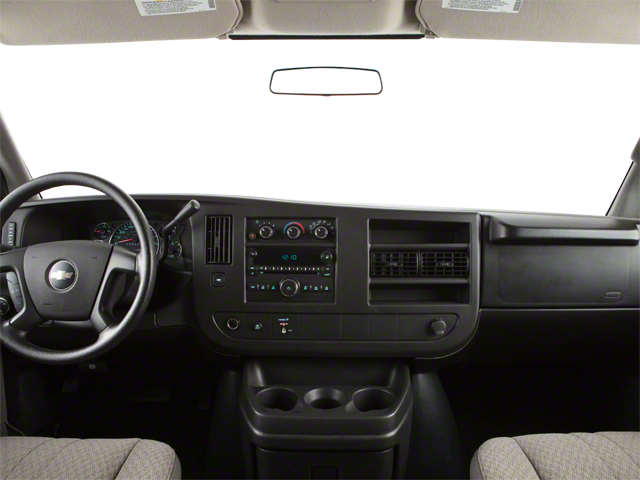

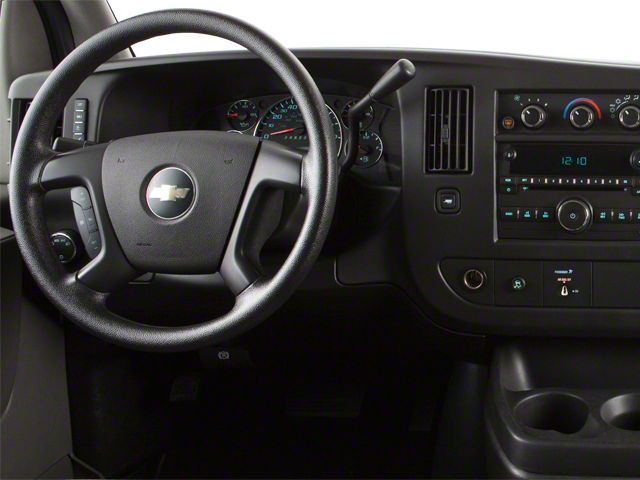

• Instrumentation
• analog with speedometer
• odometer with trip odometer
• fuel level
• voltmeter
• engine temperature and oil pressure
• Oil life monitor
• Warning tones
• headlamp on and key-in-ignition
• Compass
• 8-point digital located in the Driver Information Center (Included and only available with (C69) rear air conditioning.)
• Theft-deterrent system
• vehicle
• PASS-Key III
• Heater
• rear auxiliary
• Defogger
• front and side windows
• Mirror
• inside rearview manual day/night
• Headliner
• cloth
• Visors
• driver and front passenger
• padded with cloth trim and dual vanity mirrors
• illuminated on passenger-side
• Assist handle
• front passenger
• Lighting
• interior with 2 dome lights defeat switch and door handle-activated switches
• Lighting
• auxiliary with reading and underhood lights
• StabiliTrak
• traction assistance and vehicle stability enhancement system
• Brake/transmission shift interlock for automatic transmissions
• Door beams
• steel-side
• Daytime running lamps
• Air bags
• frontal
• driver and right-front passenger (Includes passenger-side air bag deactivation switch for models with (C6P) 8600 lbs. (3901 kg) GVWR and above. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. Always use safety belts and the correct child restraints for your child's age and size
• even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Air bags
• head/side-curtain provides coverage for first 3-rows only. Enhanced-technology glass is provided for the fourth and fifth rows when equipped with 12- and 15-passenger seating. (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size
• even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Child seat anchors all three passenger rear seats have four anchors and two tethers

• Vehicle
• Rear Door Type: Panel
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3083
• Curb Weight - Rear (lbs): 2843
• Gross Vehicle Weight Rating Cap (lbs): 9600
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1455
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Maximum Trailering Capacity (lbs): 9700
• Suspension
• Suspension Type - Front: Coil Springs
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Tires
• Front Tire Order Code: XHH
• Rear Tire Order Code: YHH
• Spare Tire Order Code: ZHH
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid Inboard Rail
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135.0
• Length, Overall w/rear bumper (in): 224.1
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 81.6
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): 49.4
• Ground to Top of Load Floor (in): 27.7
• Ground Clearance, Front (in): 8.2
• Ground Clearance, Rear (in): 7.1
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Step Up Height - Front (in): 19.4
• Step Up Height - Side (in): 20.2
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.6
• Cargo Area Length @ Floor to Seat 1 (in): 127.8
• Cargo Area Length @ Floor to Seat 2 (in): 89.4
• Cargo Area Length @ Floor to Seat 3 (in): 57.4
• Cargo Area Length @ Floor to Seat 4 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.5
• Cargo Box (Area) Height (in): 51.9
• Cargo Volume to Seat 1 (ft³): 217.3
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): - TBD -
• Cargo Volume to Seat 4 (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 12
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.5
• Second Head Room (in): 38.5
• Second Leg Room (in): 34.8
• Second Shoulder Room (in): 68.9
• Second Hip Room (in): 66.0
• Third Head Room (in): 38.6
• Third Leg Room (in): 37.6
• Third Shoulder Room (in): 63.5
• Third Hip Room (in): 64.4
• Fourth Head Room (in): 38.1
• Fourth Leg Room (in): 39.8
• Fourth Shoulder Room (in): 68.3
• Fourth Hip Room (in): 59.6
• Summary

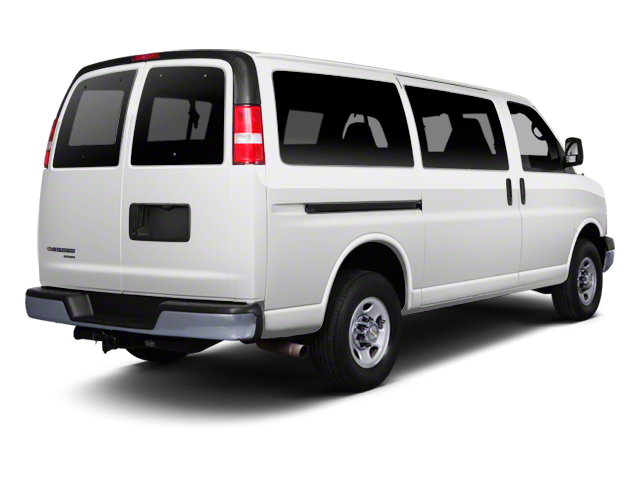

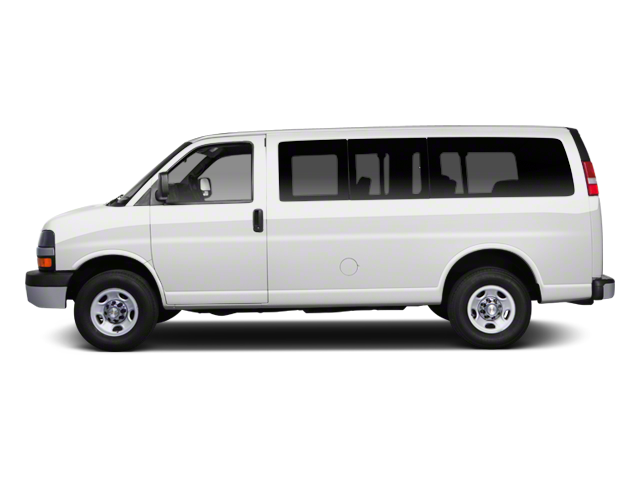

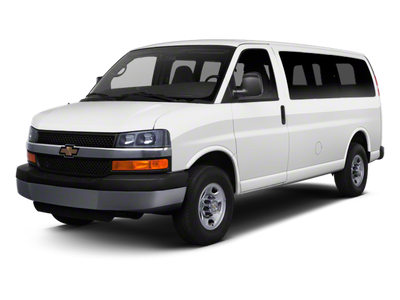

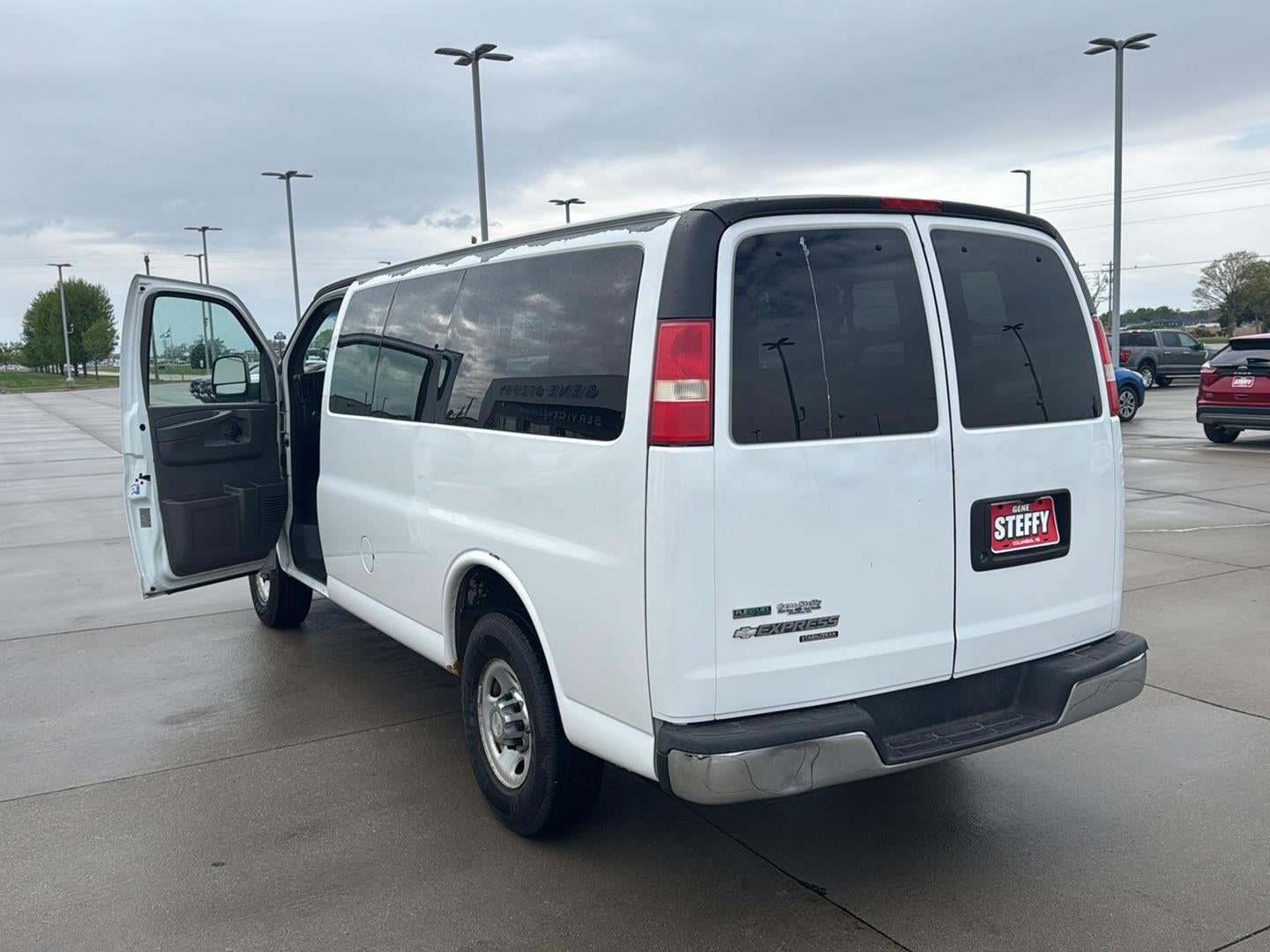

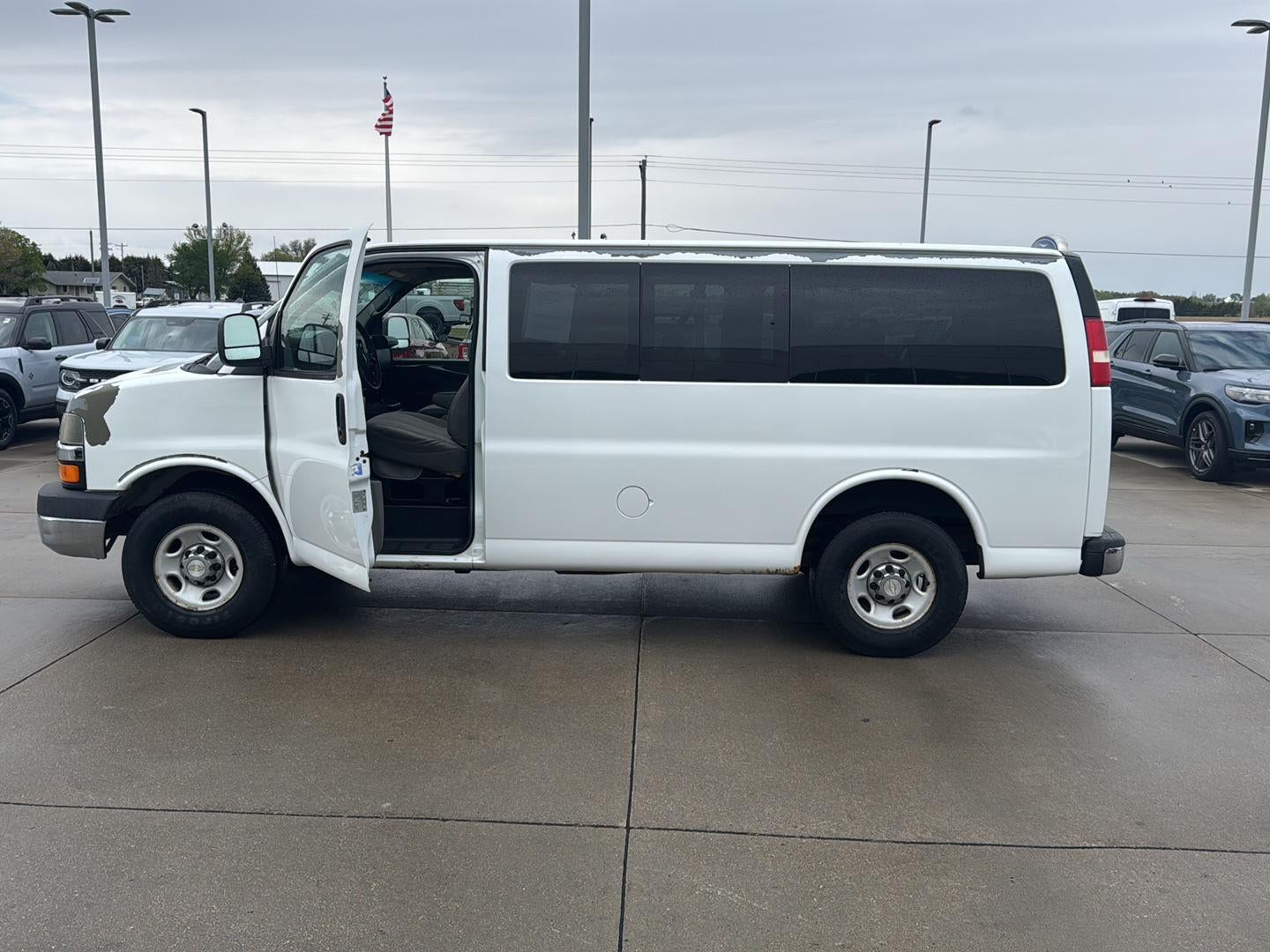

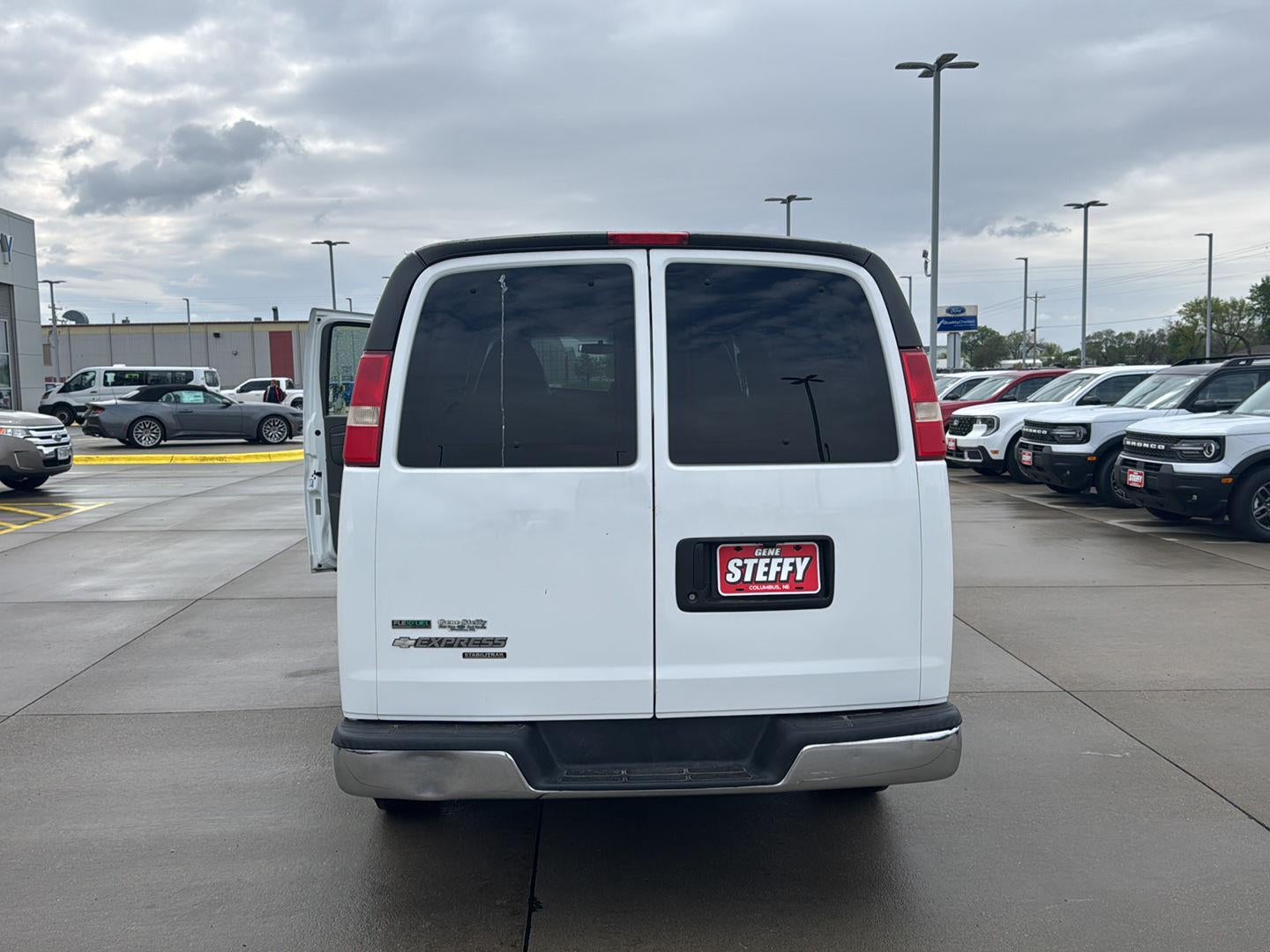

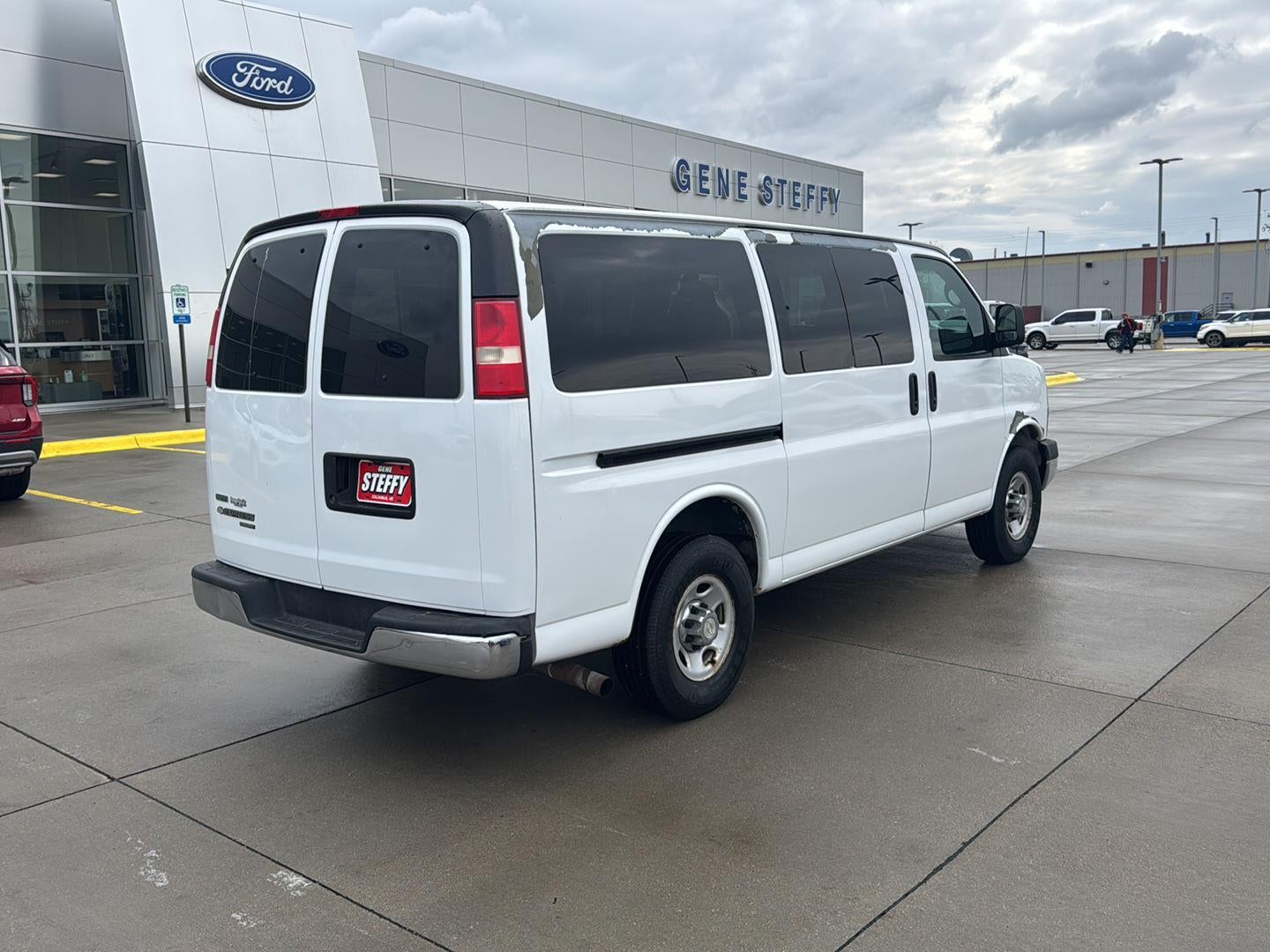

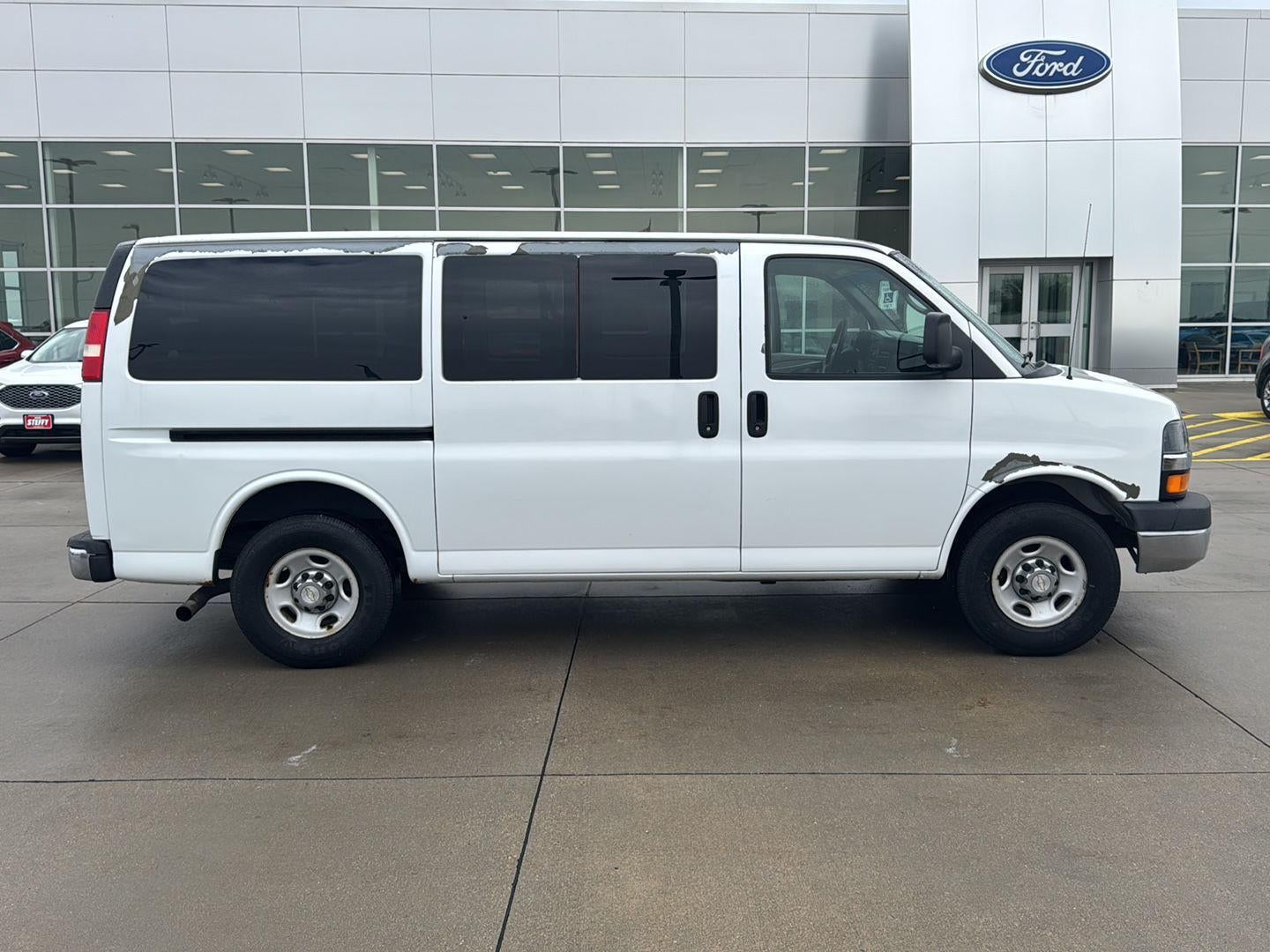

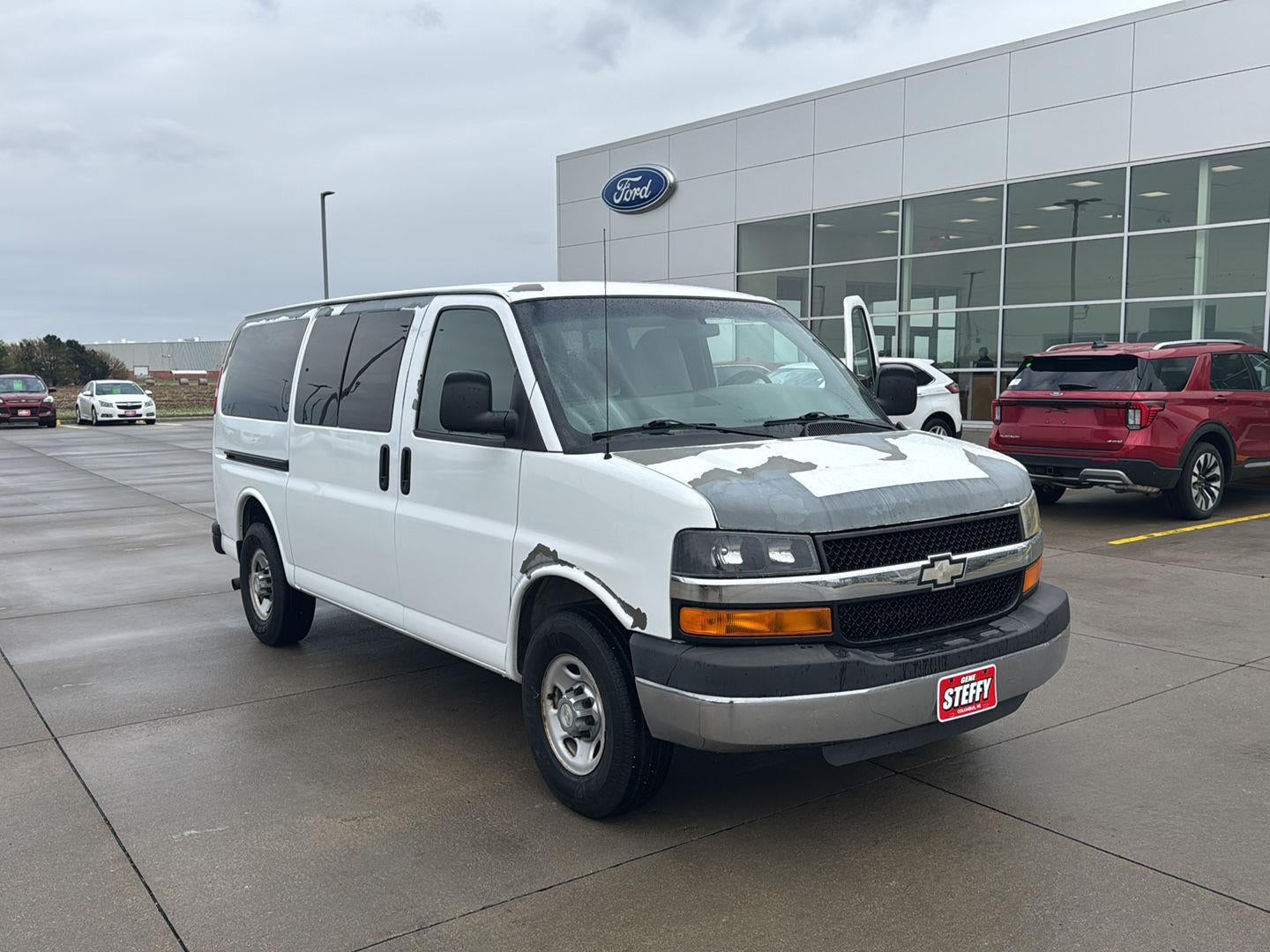

• Vehicle Name: Chevrolet Express Passenger
• Body Style: 3500 135" WB
• Body Code: ZW9
